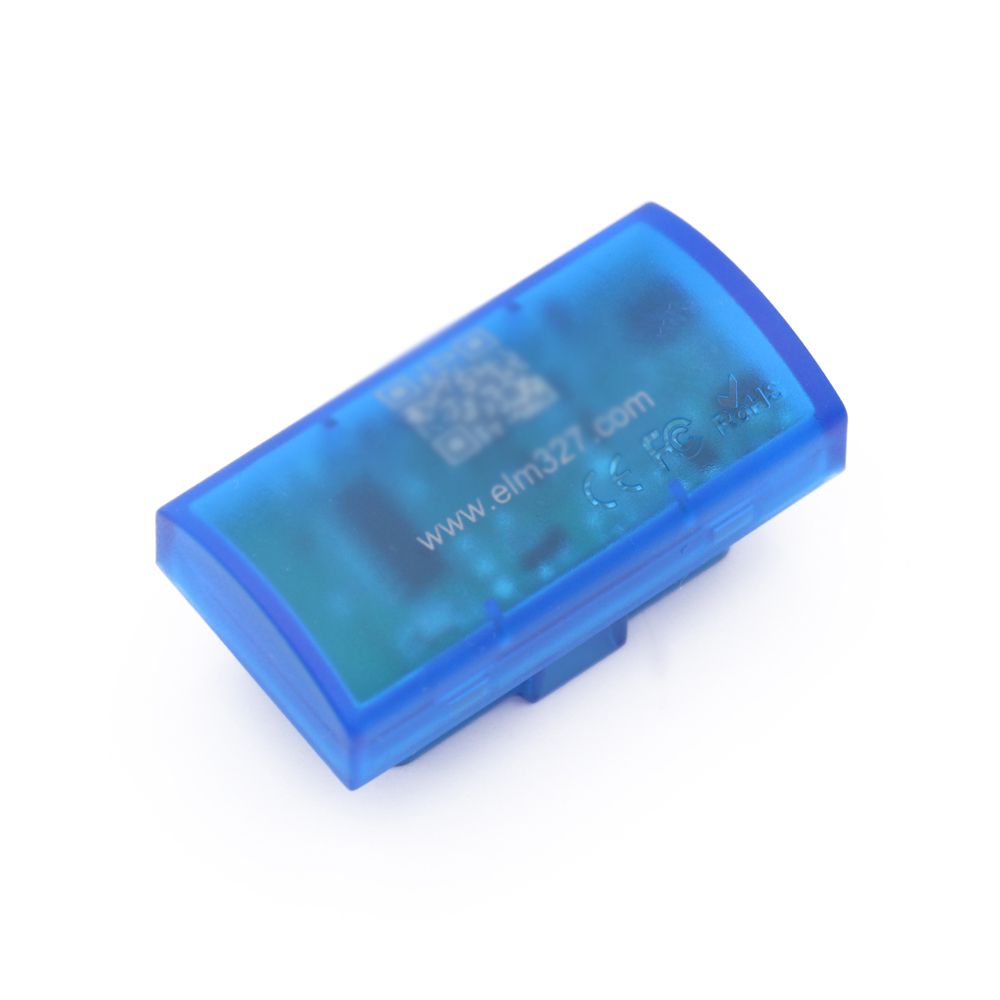

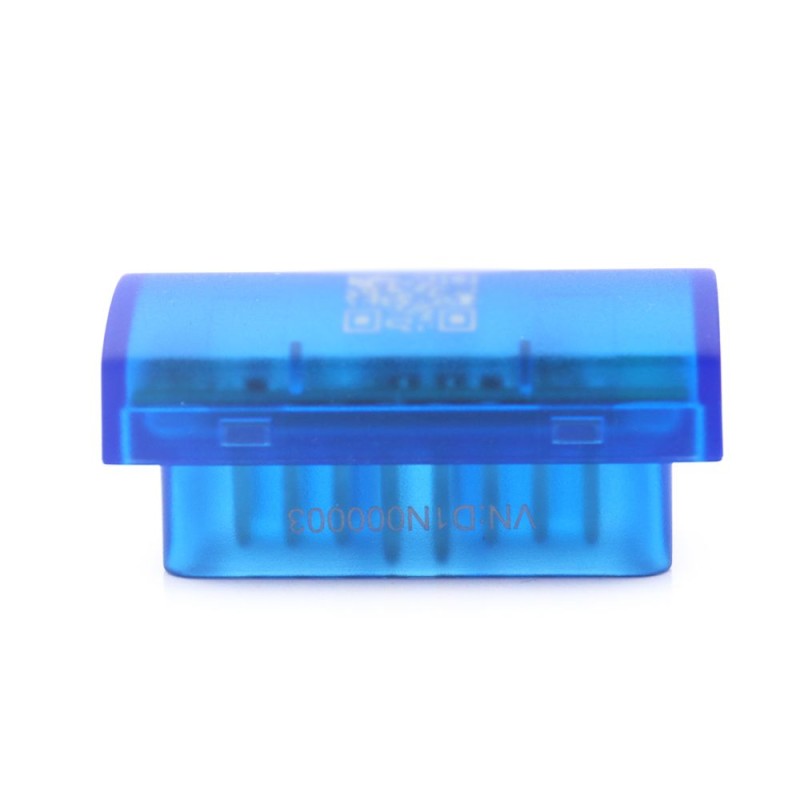

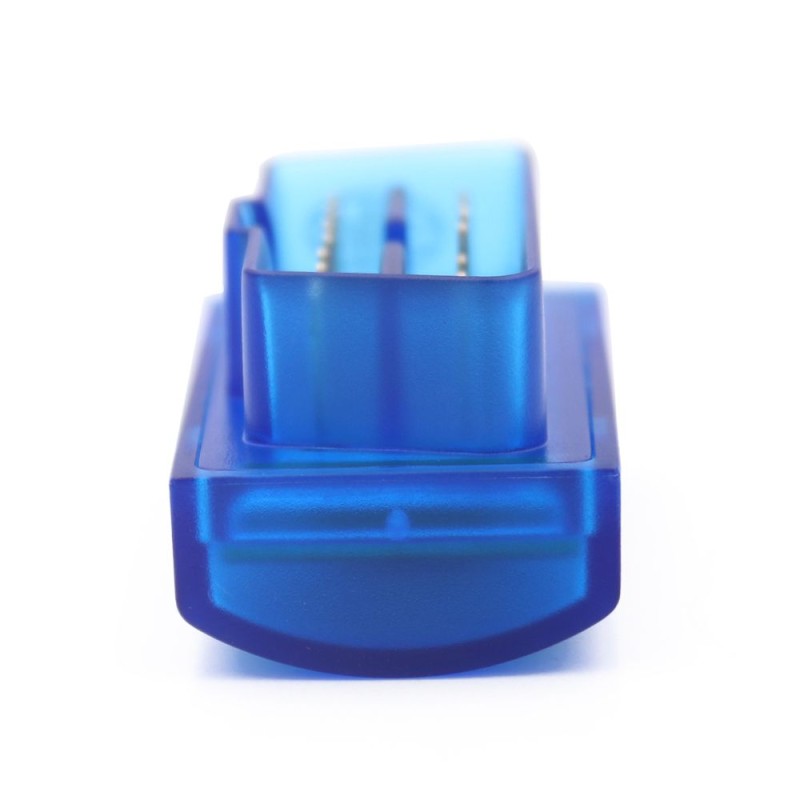

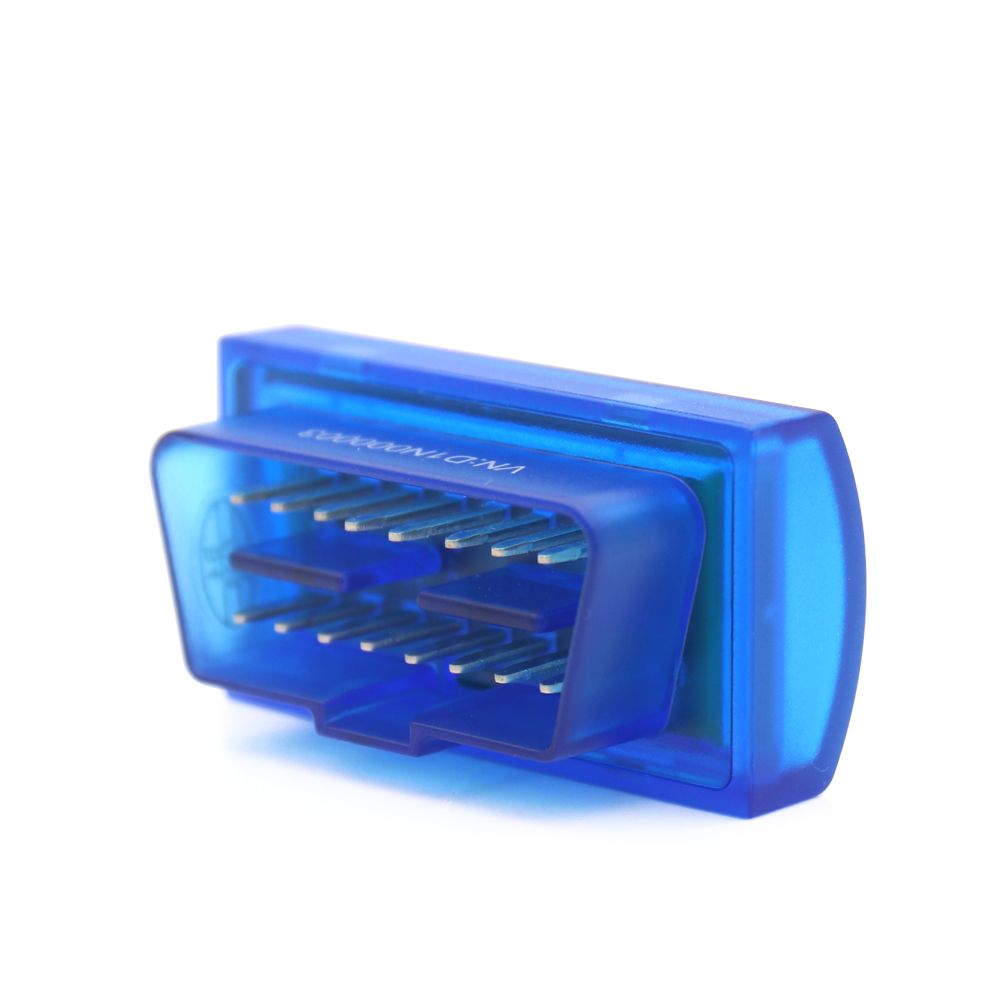

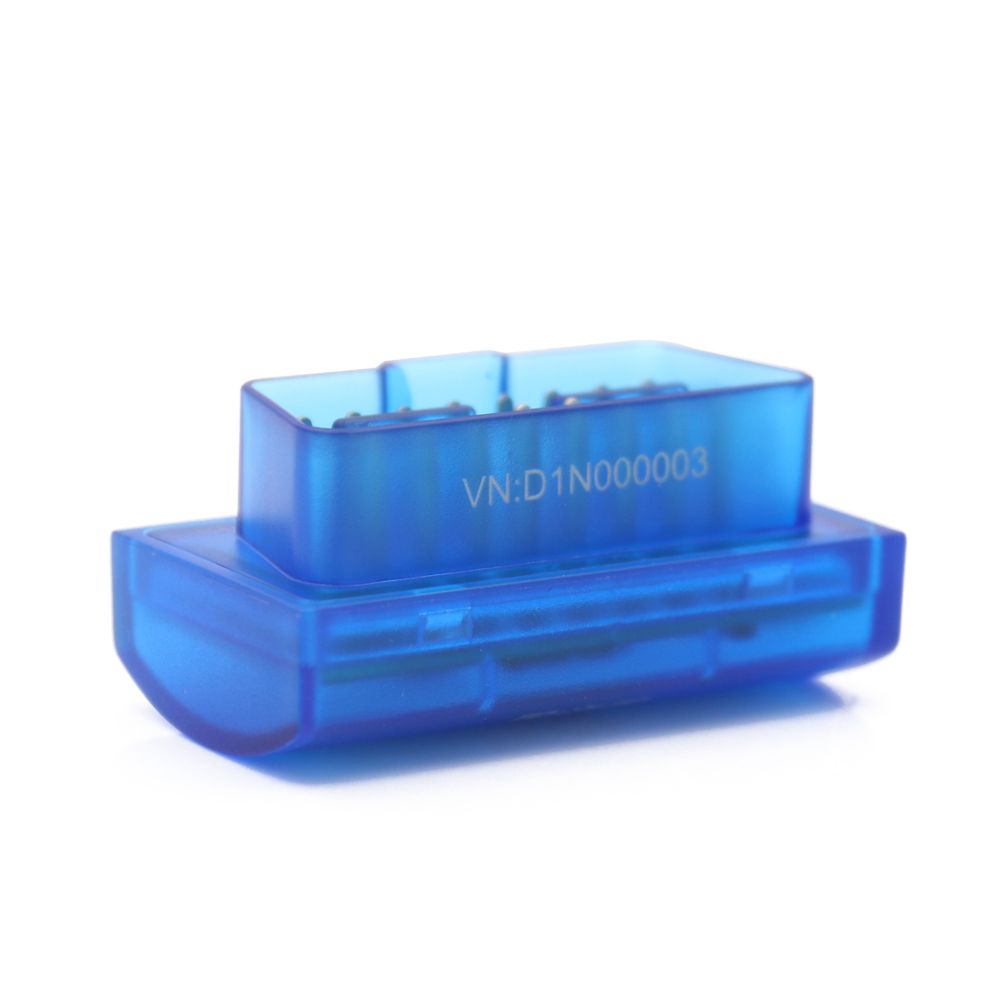

OBDII Scanner WiFi Car Code Reader Wireless Check Engine Light Diagnostic Scan Tool for iOS Android

$13.00

  • Model CUDMEQGS
  • Availability: In Stock
  • Ex Tax: $13.00
Features:

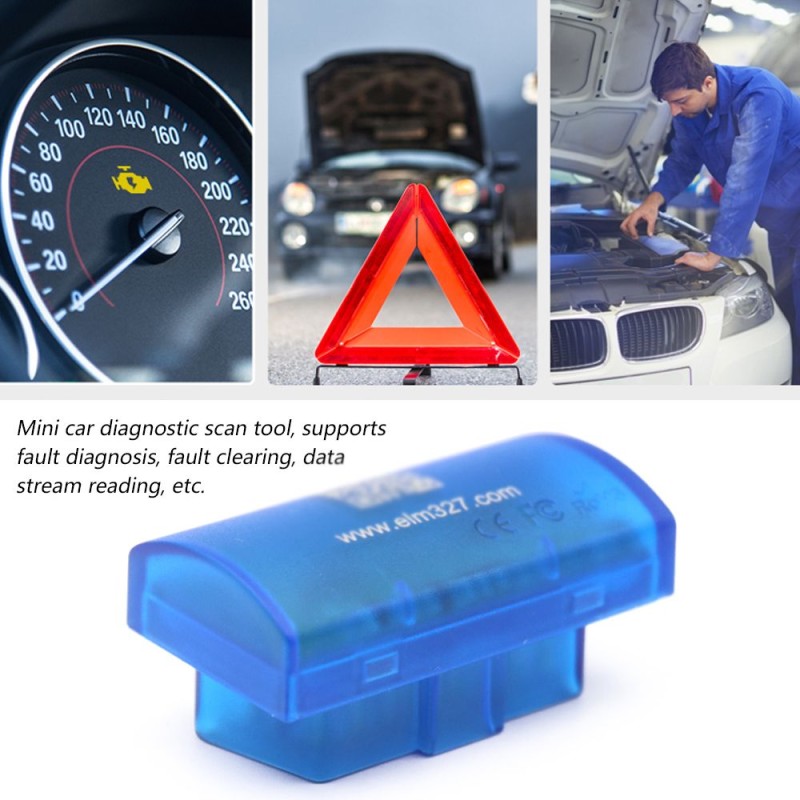

Mini car diagnostic scan tool, supports fault diagnosis, fault clearing, data stream reading, etc.
WiFi connection, compatible with iOS and Android systems, helps to quickly diagnose car faults.

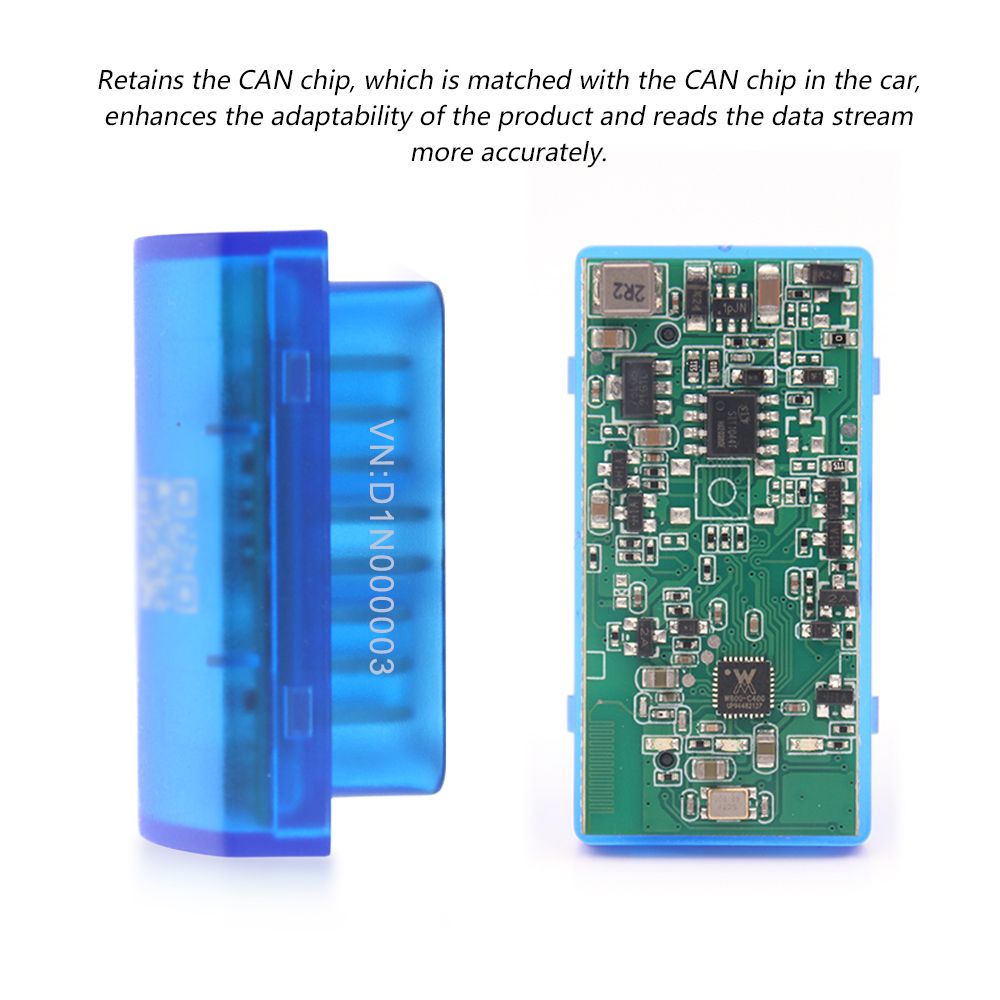

Retains the CAN chip, which is matched with the CAN chip in the car, enhances the adaptability of the product and reads the data stream more accurately.
Plug and play, easy to operate, suitable for all vehicle models that comply with OBDII protocol.

Specifications:
Color: Blue
Material: Plastics
Supported Protocol: 1. SAE J1850 PWM (41.6Kbaud)
                                2. SAE J1850 VPW (10.4Kbaud)
                                3. ISO9141-2(5 baud init, 10.4Kbaud)
                                4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
                                5. ISO14230-4 KWP (f ast init, 10.4 Kbaud)
                                6. ISO15765-4 CAN (11bit ID, 500 Kbaud)
                                7. ISO15765-4 CAN (29bit ID, 500 Kbaud)
                                8. ISO15765-4 CAN (11bit ID, 250 Kbaud)
                                9. ISO15765-4 CAN (29bit ID, 250 Kbaud)
Working Voltage: 9-16V
Working Current: 16mA
Supported System: iOS, Android
Operating Temperature: -40-80℃
Storage Temperature: -30-80℃
Item Size: 43 * 25 * 30mm/ 1.7 * 1.0 * 1.2in
Item Weight: 19.5g/ 0.7oz

Packing List:
1 * Car Diagnostic Scan Tool
1 * Manual
